产品规格

处理器

• LGA 1155 socket for:
   - Intel^® Core™ i7-2600 (8M Cache, up to 3.8 GHz); 95W
   - Intel^® Core™ i5-2400 (6M Cache, up to 3.4 GHz); 95W
   - Intel^® Core™ i3-2120 (3M Cache, 3.3 GHz); 65W
   - Intel^® Pentium^® G850 (3M Cache, 2.9 GHz); 65W
• New microarchitecture on 32nm process technology
• Intel^® Advanced Vector Extensions (Intel^® AVX) Instructions
• Intel^® Turbo Boost Technology

芯片组

• Intel^® B65 PCH (Platform Controller Hub)

系统内存

• Four 240-pin DDR3 DIMM sockets
• Supports DDR3 1066/1333MHz
• Supports dual channel memory interface
• Supports up to 32GB system memory
• DRAM device technologies: 1Gb, 2Gb and 4Gb DDR3 DRAM technologies
  are supported for x8 and x16 devices, unbuffered, non-ECC

显示

• Intel^® HD Graphics
• Display ports: DVI-I (DVI-D signal) and VGA
• DVI-I supports up to 1920x1200 @ 60Hz resolution
• VGA supports up to 2048x1536 @ 75Hz resolution
• Supports 6 Graphics Execution Units (EUs)
• Intel^® Clear Video Technology
• DirectX Video Acceleration (DXVA) support for accelerating video
  processing

声卡

• Realtek^® ALC886 5.1-channel High Definition Audio
• Audio outputs: Mic-in/Center+Subwoofer, line-in/surround and line out
• S/PDIF audio interface

网络

• 2 Realtek^® RTL8111DL PCI Express Gigabit Ethernet controllers
• Integrated 10/100/1000 transceiver
• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

SATA界面

• 6 Serial ATA ports
   - 5 SATA 2.0 ports with data transfer rate up to 3Gb/s
   - 1 SATA 3.0 port with data transfer rate up to 6Gb/s
• Integrated Advanced Host Controller Interface (AHCI) controller

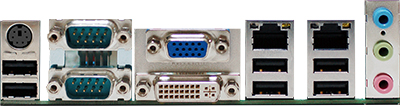

后面板输出/输入端口

• 1 mini-DIN-6 port for PS/2 mouse/keyboard
• 2 DB-9 serial ports
   - Supports RS232/422/485 (RS232 and/or Power)
• 1 DB-15 VGA port
• 1 DVI-I port (DVI-D signal)
• 2 RJ45 LAN ports
• 6 USB 2.0/1.1 ports
• Line-in/Surround, Line out, Mic-in/Center+Subwoofer jacks

输入/输出连接器

• 2 connectors for 4 external USB 2.0/1.1 ports
• 4 connectors for 4 external RS232 serial ports
• 1 SDVO connector for the optional SDVO-LVDS daughterboard
• 1 8-bit Digital I/O connector
• 1 front audio connector for line-out and mic-in jacks
• 1 CD-in connector
• 1 S/PDIF connector
• 6 Serial ATA ports
• 1 IDE connector
• 1 24-pin ATX power connector
• 1 8-pin 12V power connector
• 1 chassis intrusion connector
• 1 front panel connector
• 3 fan connectors

扩展插槽

• 1 Mini PCIe slot (PCIe 2.0)
   - Supports half size and/or full size Mini PCIe card
• 7 PCI slots (PCI 2.3)

可信任平台模块（选配）

• Provides a Trusted PC for secure transactions
• Provides software license protection, enforcement and password
  protection

BIOS

• AMI BIOS
   - 64Mbit SPI BIOS

节能设计

• Supports ErP Lot6 power saving (optional)
• Supports ACPI
• System Power Management
• Wake-On-Events include:
   - Wake-On-PS/2 KB/Mouse
   - Wake-On-USB KB/Mouse
   - Wake-On-LAN
   - RTC timer to power-on the system
• CPU stopped clock control
• AC power failure recovery

智能型零损耗监控

• Monitors CPU/system temperature and overheat alarm
• Monitors VCORE/5V/3.3V/V_DIMM/12V/5VSB voltages and failure alarm
• Monitors CPU/system fan speed and failure alarm
• Read back capability that displays temperature, voltage and fan speed
• Watchdog timer function

POWER CONSUMPTION

• 99.55 W with i7-2600 at 3.40GHz and 2x 2GB DDR3 DIMM

溫度

• Operating: 0^oC to 60^oC
• Storage: -20^oC to 85^oC

湿度

• 10% to 90%

尺寸

• ATX form factor
• 305mm x 244mm (12" x 9.6")

CERTIFICATIONS

• CE
• FCC Class B
• UL
• RoHS
