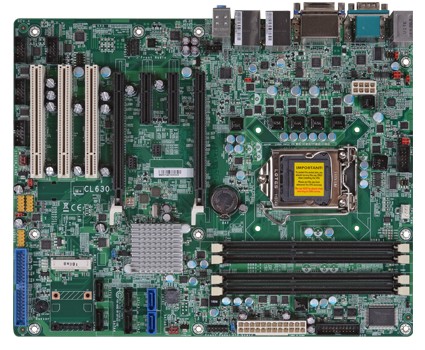

产品规格

处理器

• LGA 1155 socket for:
   - 3rd Generation Intel^® Xeon^® processors (22nm process technology)
      : Intel^® Xeon^® E3-1275v2 (8M Cache, up to 3.9GHz); 77W
      : Intel^® Xeon^® E3-1225v2 (8M Cache, up to 3.6GHz); 77W
   - 2nd Generation Intel^® Xeon^® processors (32nm process technology)
      : Intel^® Xeon^® E3-1275 (8M Cache, up to 3.8GHz); 95W
      : Intel^® Xeon^® E3-1225 (6M Cache, up to 3.4GHz); 95W

芯片组

• Intel^® C216 Express chipset

系统内存

• Four 240-pin DDR3 DIMM sockets
• Supports DDR3 1333/1600MHz (3rd generation processors)
  Supports DDR3 1066/1333MHz (2nd generation processors)
• Supports dual channel memory interface
• Supports up to 32GB system memory
• DRAM device technologies: 1Gb, 2Gb and 4Gb DDR3 DRAM technologies
  are supported for x8 and x16 devices, unbuffered, ECC

显示

• Intel^® HD Graphics 4000P
• Display ports: 1 HDMI, 2 DVI-I (1 supports DVI-D signal only)
• HDMI and DVI display resolution up to 1920x1200
• VGA display resolution up to 2048x1536 pixels with 32-bit color at 75Hz
• Intel^® Clear Video Technology
• Intel^® Advanced Vector Extensions (Intel^® AVX) Instructions
• Supports DirectX 11 and OGL 3.0

声卡

• Realtek^® ALC886 5.1-channel High Definition Audio
• Audio outputs: Mic-in/Center+Subwoofer, line-in/surround and line-out
• S/PDIF audio interface

网络

• Intel^® WG82579LM with iAMT8.0 Gigabit Ethernet Phy
• Intel^® WG82574L PCI Express Gigabit Ethernet controller
• Integrated 10/100/1000 transceiver
• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

SATA界面

• 6 Serial ATA ports
   - 2 SATA 3.0 ports with data transfer rate up to 6Gb/s
   - 4 SATA 2.0 ports with data transfer rate up to 3Gb/s
     (SATA port 4 provides adequate space for SATA DOM)
• Integrated Advanced Host Controller Interface (AHCI) controller
• Supports RAID 0/1/5/10

可信任平台模块（选配）

• Provides a Trusted PC for secure transactions
• Provides software license protection, enforcement and password
  protection

USB INTERFACE

• XHCI Host Controller supports up to 4 super speed USB 3.0 ports

后面板输出/输入端口

• 1 mini-DIN-6 port for PS/2 mouse/keyboard
• 4 USB 3.0/2.0/1.1 ports
• 2 USB 2.0/1.1 ports
• 1 DB-9 serial port
   - Supports RS232/422/485 (RS232 and/or Power)
• 1 HDMI port
• 2 DVI-I ports (1 supports DVI-D signal only)
• 2 RJ45 LAN ports
• Line-in/surround, Line-out, and Mic-in/Center+Subwoofer jacks

输入/输出连接器

• 3 connectors for 6 external USB 2.0/1.1 ports
• 5 connectors for 5 external serial ports
   - 1 RS232/422/485 (RS232 and/or Power)
   - 4 RS232
• 1 8-bit Digital I/O connector
• 1 front audio connector for line-out and mic-in jacks
• 1 CD-in connector
• 1 S/PDIF connector
• 6 Serial ATA ports (2 SATA 3.0; 4 SATA 2.0)
• 1 IDE connector
• 1 24-pin ATX power connector
• 1 8-pin 12V power connector
• 1 chassis intrusion connector
• 1 front panel connector
• 3 fan connectors

扩展插槽

• 2 PCIe x16 slots
   - Supports Gen 3.0 (3rd generation processors)
   - Supports Gen 2.0 (2nd generation processors)
   - 1 x16 signal or 2 x8 signals
• 2 PCIe x4 slots (PCIe 2.0)
   - 1 x4 signal and 1 x1/x4 signal
• 1 Mini PCIe slot: PCIe and USB signals (PCIe 2.0)
   - Supports half size and/or full size Mini PCIe card
• 3 PCI slots (PCI 2.3)

主动式管理技术

• Supports iAMT8.0
• Out-of-band system access
• Remote troubleshooting and recovery
• Hardware-based agent presence checking
• Proactive alerting
• Remote hardware and software asset tracking

BIOS

• AMI BIOS
   - 64Mbit SPI BIOS

节能设计

• Supports ErP Lot6 power saving (optional)
• ACPI v3.0 specification
• System Power Management
• Wake-On-Events include:
   - Wake-On-PS/2 KB/Mouse
   - Wake-On-USB KB/Mouse
   - Wake-On-LAN
   - RTC timer to power-on the system
• CPU stopped clock control
• AC power failure recovery

智能型零损耗监控

• Monitors CPU/system temperature and overheat alarm
• Monitors VCORE/5V/3.3V/V_DIMM/12V/5VSB voltages and failure alarm
• Monitors CPU/system fan speed and failure alarm
• Read back capability that displays temperature, voltage and fan speed
• Watchdog timer function

POWER CONSUMPTION

• 86.49 W with E3-1275 at 3.40GHz and 4x 1GB DDR3 DIMM

溫度

• Operating: 0^oC to 60^oC
• Storage: -20^oC to 85^oC

湿度

• 10% to 90%

尺寸

• ATX form factor
• 305mm x 244mm (12" x 9.6")

CERTIFICATIONS

• CE
• FCC Class B
• RoHS
