14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ I9-14901E (8 Cores, 36M Cache, up to 5.6 GHz); 65W
Intel® Core™ I5-14401E (6 Cores, 24M Cache, up to 4.7 GHz); 65W
Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W
Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W
Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W
Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5 GHz); 65W
Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W
Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W
Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W
Intel® 300 (2 Cores, 6M Cache, up to 3.9 GHz); 46W
Intel® 300T (2 Cores, 6M Cache, up to 3.4 GHz); 35W

13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 65W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W

12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W
Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W

AMI SPI 256Mbit

Intel® UHD Graphics 700 series

OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

1 x VGA
2 x DP++
1 x HDMI 2.0a

VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2304 @60Hz
HDMI: resolution up to 4096x2160 @ 24Hz

VGA + 2 x DP++ + HDMI

2 x PCIe x16 (Gen 4, 16 or 8+8)
3 x PCIe x4 (Gen 4, open edge)
1 x PCIe x4 (Gen 3, open edge, co-lay M.2-M2, function selected by BIOS.)
1 x PCI

Realtek ALC888S

4 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1

1 x VGA
2 x DP++
1 x HDMI

1 x Line-out
1 x Mic-in
1 x Line-in (opt.)

2 x RS-232/422/485
4 x RS-232

1 x Front Audio
1 x S/PDIF

4 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10

4-IN / 8-OUT DIO

1 x SMBus

1 x eSPI

1 x PS/2 (2.54mm pitch)

System Reset, Programmable via Software from 1 to 255 Seconds

TPM2.0

ATX

8-pin ATX 12V power
24-pin ATX power

Typical: i9-14900K: 3.3V @ 0.69A (2.28W); 5V @ 0.95A (4.75W); 12V @ 1.26A (15.12W)
Max.: i9-14900K: 3.3V @ 1.2A (3.96W); 5V @ 3.6A (18W); 12V @ 29.02A (348.24W)

CR2032 Coin Cell

Windows 10 IoT Enterprise 64-bit
Windows 11 LTSC

Linux

Operating: -5 to 65°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery

Operating: 5 to 95% RH
Storage: 5 to 95% RH

ATX Form Factor
305mm (12") x 244mm (9.6")

PCB: 1.6mm
Top Side: 33.3mm, Bottom Side: 4mm

CE, FCC Class B, RoHS, UKCA, KC, UL

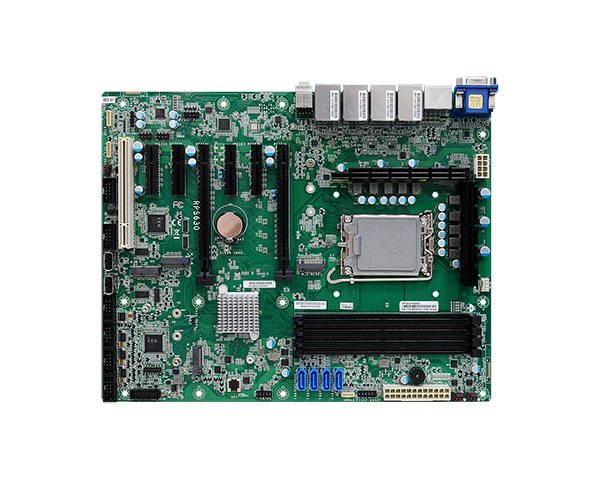

1 RPS630 motherboard
1 COM port cables (Length: 300mm, 2 x COM ports)
1 Serial ATA data cable (Length: 500mm)
1 I/O shield
1 M.2 screw/standoff
