Processor

CPU

J1900 (Bay Trail-D )

Chipset

2.0G/4C/4T

Consumption

10W

Memory

Frequency / Capacity

1 x DDR3L 1333MHz, Optional capacity, up to 8GB

Storage

SATA

Optional 1 x 2.5”Hard Disk (Optional capacity)

mSATA

Optional 1 x mSATA (Full-size, Optional capacity)

Display

Display

Intel HD Graphics

Screen

LCDSize/Display Type

12" XGA LCD

Resolution

1024×768

Display Color

16.7M

Viewing Angle

80/80/60/80

Brightness

380cd/c㎡

Contrast

1500：1

Touch Screen

Five-wire resistive touch screen

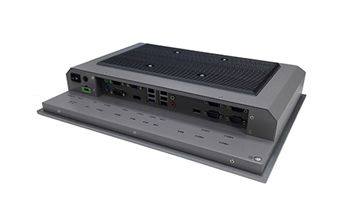

Rear I/O

Power Input

1 x DC 12V IN

PWR SW

1 x POWER SW

Display Ports

1 x VGA；1 x HDMI

COM Ports

6 x COM

LAN Ports

2 x Gigabit LAN (Intel i211-AT + Realtek RTL8111G )

USB Ports

4x USB2.0 ; 1 x USB3.0

KB/ MS

1 x PS/2 KB/MS

Audio

1 x Line-Out/MIC

WIFI

Support 1 x Mini PCIe WIFI Device

Adapter 60W

Input

AC 100~240V/1.5A 50/60Hz

Output

DC 12V/5A

Expansion

Mini PCIe

1 x Mini PCIe (Half-size)

Dimensions

W:321mm D:54.1mm H:256mm

Environment

Operation Temp

& Humidity

-10~60℃/10~90%,  Non-condensing

Storage Temp

& Humidity

-20~70℃/10~90%,  Non-condensing
