处理器系统
|
-
Processors:
- 3rd Generation Intel® Core™ processors
- 2nd Generation Intel® Core™ processors
- Supports up to 65W TDP
-
Intel® H61 Express chipset
|
|
|
|
|
|
内存
|
-
Two DDR3 1333/1600MHz SODIMM sockets (3rd generation processors)
Two DDR3 1066/1333MHz SODIMM sockets (2nd generation processors)
-
Supports up to 16GB system memory
|
|
|
|
|
|
LCD and TOUCH SCREEN
|
-

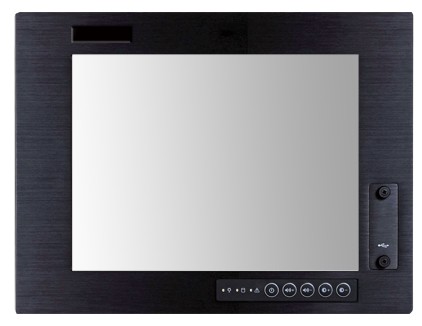

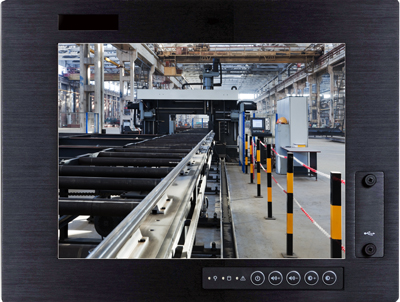

15” 1024x768 TFT LCD panel with touch screen
-
Supports 5-wire Resistive Touch
-
50,000 MTBF LED backlight
-
Brightness (cd/m²): 250
|
|
|
|
|
|
显示
|
-
Intel® HD Graphics
-
Display ports: HDMI and DVI-I
-
HDMI and DVI-I display resolution up to 1920x1200
|
|
|
|
|
|
存储
|
-
2 2.5" SATA drive bays
- SATA 2.0 port with data transfer rate up to 3Gb/s
-
1 optical drive bay*
|
|
|
|
|
|
网络
|
-
1 Intel® W82579LM Gigabit Ethernet controller
-
1 Intel® W82574L Gigabit Ethernet controller
|
|
|
|
|
|
声卡
|
-
Realtek® ALC886 5.1-channel High Definition Audio
-
Two 3W speakers(left and right sides)
|
|
|
|
|
|
COM
|
-
1 RS232/422/485 COM port
-
1 RS232 COM port
|
|
|
|
|
|
USB
|
-
2 Type A USB 2.0/1.1 ports at the front panel
-
4 Type A USB 2.0/1.1 ports at the bottom
|
|
|
|
|
|
输入输出接口
|
-
Front
- 2 Type A USB 2.0/1.1 ports
- 5 function keys: power, volume, and brightness
- 3 LED indicators: Power, HDD, Alarm
- 1 built-in antenna
-
Bottom
- 1 DB-9 RS-232/422/485 COM
- 1 DB-9 RS-232 COM
- 1 PS/2 keyboard
- 1 PS/2 mouse
- 4 Type A USB 2.0/1.1
- 3 audio jacks: Mic-in, Line-in, Line-out
- 2 RJ45 LAN with LEDs
- 1 DVI-I
- 1 HDMI
- 1 power switch
|
|
|
|
|
|
扩展
|
-
1 PCIe x1 and 1 PCI (X100-3PE2)
-
2 PCI (X100-2P1M)
-
2 Mini PCIe
- Supports PCIe and USB signals for Wi-Fi module
- Supports half/full size Mini PCIe card
|
|
|
|
|
|
|
冷却系统
|
-
Smart fan system control suitable for quiet environments
|
|
|
|
|
|
电源
|
-
Power input voltage
- Standard: ATX power type, AC 100-240V, 3.5A, 250W
- Option: 24V DC-in 3-pole terminal block
- Available upon request: 12V and 30V DC-in 3-pole terminal block
|
|
|
|
|
|
环境指标
|
-
Temperature
- Operating: -100C ~ 500C
- Storage: -200C ~ 600C
-
Relative Humidity
- 90% RH at 500C, 1 week
-
Corrosion
- 4 periods of 7 days at 500C with 90-95% relative humidity after 2 hours salt spray or waiver
|
|
|
|
|
|
抗振动测试
|
-
Operating: 1G, 5~500Hz
-
Non-operating: 1.5G, 5~25Hz
-
IEC 68-2-64 compliant
|
|
|
|
|
|
冲击测试
|
-
Operating: 3G peak acceleration (11 msec. duration)
-
Non-operating: 10G peak acceleration (11 msec. duration)
-
IEC 68-2-27 compliant
|
|
|
|
|
|
前面板保护
|
-
IP65 (Dust Tight; Water Proof protection)
|
|
|
|
|
|
结构
|
-
Aluminum front bezel
-
Rear panel: sheet metal
|
|
|
|
|
|
安装方式
|
-
VESA mount: 75x75 and 100x100
-
Wall mount bracket*
-
Panel mount: mounting clamp*
|
|
|
|
|
|
尺寸
|
-
410mm x 320mm x 106mm (W x H x D)
|
|
|
|
|
|
重量
|
|
|
|
|
|
|
|
支持的操作系统
|
-
Windows XP, WES 2009, POSReady 2009, Windows 7, WES 7
-
Linux (Distribution available upon request)
|
|
|
|
|
|
安规认证
|
|
|
|
|
|
