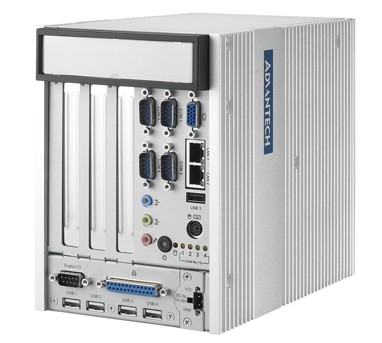

ARK-5260F-D5A1E
|
|
Processor System
|
CPU
|
Intel® Atom™ D510 processor
|
|
Max. Speed
|
1.66 GHz
|
|
System Chipset
|
ICH8M
|
|
BIOS
|
AMI 16Mb SPI Flash
|
|
Memory
|
Technology
|
Single channel DDR2 667 MHz
|
|
Max. Capacity
|
2 GB SODIMM
|
|
Socket
|
1 x 200-pin SODIMM
|
|
Graphics
|
Chipset
|
Embedded Gen3.5+ GFX Core technology, Direct X 9/Pixel Shader 2.0 compliant
|
|
VRAM
|
Shared 224 MB
|
|
Interface
|
VGA: Supports up to 2048 x 1536 @ 60 Hz
|
|
Ethernet
|
LAN1
|
10/100/1000 Mbps GigaLAN Controller, Supports Wake On LAN
|
|
LAN2
|
10/100/1000 Mbps GigaLAN Controller, Supports Wake On LAN
|
|
Audio
|
Interface
|
Line-in, Line-out, Mic-in
|
|
I/O Interface
|
Serial Ports
|
4 x RS-232/422/485 port, support auto-flow control
|
|
USB Interface
|
5 x USB ports, USB 2.0 compliant
|
|
Keyboard/Mouse
|
1 x PS/2 port, supports PS/2 mouse and keyboard
|
|
Watchdog timer
|
255 levels timer interval, setup by software
|
|
Parallel Port
|
Supports D-sub 25-pin connector
|
|
DIO
|
Supports 8-bit digital IO
|
|
Storage
|
HDD
|
Supports two drive bays space for SATA 2.5" HDD
|
|
SSD
|
Supports one internal CompactFlash socket for type I/II CompactFlash disk
|
|
Expansion
|
PCI/PCIe Slot
|
2 PCI Slot, and 1 PCIe Slot / Supports maximun 15W power for expansion / Supports maximum dimension of 99 mm (width) x 186 mm (length) for expansion PC board
|
|
Software Support
|
Microsoft Windows
|
Win 7, XP Embedded, WinCE 6.0
|
|
Linux
|
Fedora 12
|
|
Power Requirement
|
Power Type
|
AT/ATX
|
|
Power Input Votage
|
12 VDC ~ 24 VDC
|
|
Minimum Power Input
|
12 V @ 5 A ~ 24 V @ 2.5 A
|
|
Power Adapter
|
AC-to-DC, 65 W DC19 V/3.4 A
|
|
Power Consumption
|
Typical
|
20W
|
|
Max.
|
23W
|
|
Mechanical
|
Construction
|
Aluminum housing
|
|
Mounting
|
Desk/wall-mounting
|
|
Dimensions (W x H x D)
|
137 x 189 x 221 mm (5.39" x 7.44" x 8.70")
|
|
Weight
|
4.2 kg (9.24 lbs)
|
|
Environment
|
Operating Temperature
|
With extend temperature peripherals 2.5-inch HDD without PC expansion Boards: 0 ~ 45° C / With extend temperature peripherals CompactFlash disk without PC expansion Boards: -20 ~ 55° C
|
|
Storage Temperature
|
- 40 ~ 85° C (-40 ~185° F)
|
|
Relative Humidity
|
95% @ 40° C (non-condensing)
|
|
Vibration Loading During Operation
|
With 2.5-inch HDD: 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 Oct./min, 1 hr/axis / With Compact Flash disk: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 Oct./min, 1 hr/axis
|
|
Safety Certifications
|
CE/FCC, CCC, BSMI / CCC, BSMI
|
