系统
处理器 6th Generation Intel® Core™ Processors, BGA 1356
Intel® Core™ i7-6600U Processor, Dual Core, 4M Cache, 2.6GHz, 15W
Intel® Core™ i5-6300U Processor, Dual Core, 3M Cache, 2.4GHz, 15W
Intel® Core™ i3-6100U Processor, Dual Core, 3M Cache, 2.3GHz, 15W
内存
4GB/8GB Memory Onboard Dual Channel DDR4 2133MHz
BIOS Insyde SPI 128Mbit
显示
控制器 Intel® HD Graphics GT Series
特性 OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
显示
1 x VGA
1 x HDMI VGA: resolution up to 2560x1600 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz or 2560x1600 @ 60Hz
三屏/双屏显示 VGA + HDMI
存储
外插/內插 1 x 2.5" SATA 3.0 Drive Bay
扩展
接口 1 x Full-size Mini PCIe (PCIe/USB)
1 x Half-size Mini PCIe (PCIe/mSATA)
声卡
音频编解码器 Realtek ALC888 5.1-channel
网络
控制器 1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
LED
指示灯 1 x Power LED
1 x HDD LED

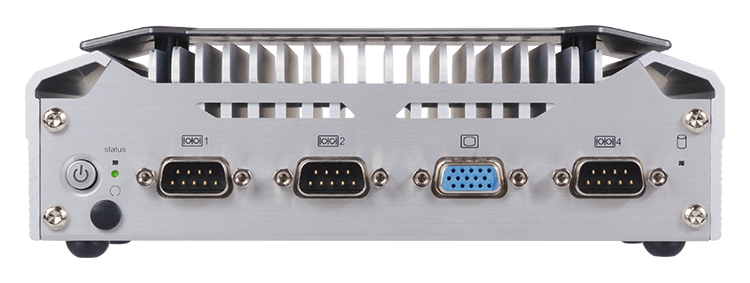

前板输入输出
串口 3 x RS-232/422/485 (DB-9) (one supports 8-bit DIO)
显示 1 x VGA
开关按钮 1 x Power Button
1 x Reset Button
Wi-Fi Antenna 1 x Wi-Fi Module Antenna Hole

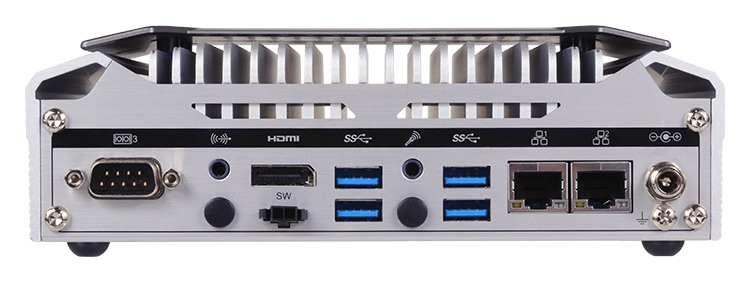

后板输入输出
网络 2 x GbE (RJ-45)
串口 1 x RS-232/422/485 (DB-9)
USB 4 x USB 3.0 (type A)
显示 1 x HDMI
声卡 1 x Line-out
1 x Mic-in
Wi-Fi Antenna 2 x Wi-Fi Module Antenna Hole
看门狗
输出与时间间隔 System Reset, Programmable via Software from 1 to 255 Seconds
电源
类型 Wide Range 15~36V
连接口 DC Jack
支持的操作系统

Windows 7 (32/64-bit)
Windows 8.1 (64-bit)
Windows 10 WES 7
WE8S
机械结构
结构 Aluminum + Metal Aluminum
安装方式 Wall/VESA/DIN Rail Mount
尺寸(宽 x 高 x 深) 181.6mm x 57mm x 118.4mm
重量 1.1 Kg
环境指标
运作温度 -20 to 60°C (SSD/mSATA)
储存温度 -20 to 85°C
相对湿度 5 to 95% RH (non-condensing)
安规认证
冲击测试 Operating:
IEC 60068-2-27 Test Ea: Shock Test
Half-Sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
抗振动测试 Operating:
IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test
Random, 1Grms @ 5~500 Hz, 30min
Non-Operating:
IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test
Sweep Sine, 3Grms @ 10~500Hz, 30min
