处理器系统
|
-
Intel Atom®/Intel® Celeron® processors (BGA 1170 packaging technology)
- Intel Atom® E3845, Quad Core, 2M Cache, 1.91GHz, 10W
- Intel Atom® E3825, Dual Core, 1M Cache, 1.33GHz, 6W
- Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz),
10W
- Intel® Celeron® N2807, Dual Core, 1M Cache, 1.58GHz
(2.16GHz), 4.3W
|
|
|
|
|
|
内存
|
-
4GB/2GB DDR3L ECC onboard (-E45/-E25)
4GB/2GB DDR3L non-ECC onboard (-J19/-N28)
-
Supports DDR3L 1333MHz (-E45/-J19/-N28)
Supports DDR3L 1066MHz (-E25)
-
Supports single channel memory interface
|
|
|
|
|
|
显示
|
-
Intel® HD Graphics
-
Display ports: 1 HDMI, 1 VGA or 1 DVI-I*
-
HDMI, DVI: resolution up to 1920x1080 @ 60Hz
-
VGA: 24-bit, resolution up to 2560x1600 @ 60Hz
|
|
|
|
|
|
存储
|
-
1 2.5" SATA drive bay
- SATA 2.0 port with data transfer rate up to 3Gb/s
-
1 mSATA module via a Mini PCIe slot
-
Supports 4GB, 8GB, 16GB and 32GB eMMC onboard*
|
|
|
|
|
|
网络
|
-
2 Intel® I210 PCI Express Gigabit Ethernet controllers
-
Integrated 10/100/1000 transceiver
-
Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
|
|
|
|
|
|
COM
|
-
4 DB-9 ports
- 3 DB-9 ports supports RS232/422/485 COM port
- 1 DB-9 port supports RS232/422/485 COM or 8-bit DIO
|
|
|
|
|
|
扩展
|
-
3 Mini PCIe slots
- 2 slots for communication
: One half size slot supports PCIe, USB, and LPC signals for
Wi-Fi module or LPC module
: One full size slot supports PCIe, USB, and 3G signals for
3G or GPRS module
- 1 full size slot for storage
: Supports mSATA module
-
1 SIM card socket
-
1 microSD socket*
|
|
|
|
|
|
DIO
|
-
1 8-bit DIO via the DB-9 port
|
|
|
|
|
|
看门狗
|
-
Watchdog timeout programmable via software from 1 to 255 seconds
|
|
|
|
|
|
可信任平台模块 (TPM) - 选配
|
-
Provides a Trusted PC for secure transactions
-
Provides software license protection, enforcement and password protection
|
|
|
|
|
|
|
输入输出接口
|
-

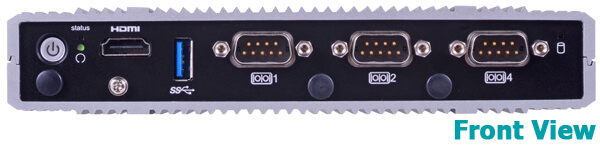

Front Panel
- 3 DB-9 serial ports
: supports RS232/422/485
: One of the ports supports 8-bit DIO
- 1 USB 3.0 (Type A) port
- 1 HDMI port
- 2 Wi-Fi antenna holes
- 1 status LED
- 1 HDD LED
- 1 reset button
- 1 power button
-

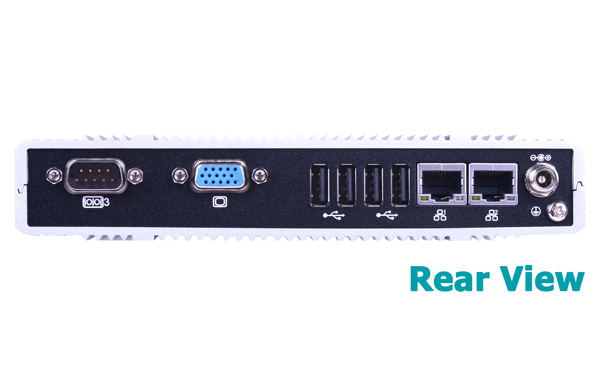

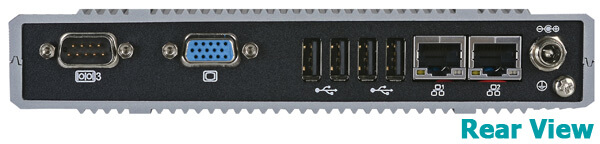

Rear Panel
- 1 DB-9 serial port
: supports RS232/422/485
- 1 VGA port; or 1 DVI-I port*
- 4 USB 2.0 (Type A) ports
- 2 RJ45 LAN ports
- 1 9~36V DC-in jack
|
|
|
|
|
|
电源
|
-
Power input voltage: 9~36V DC-in
|
|
|
|
|
|
环境指标
|
-
Temperature
- Operating (E3845/E3825)
: -20°C~60°C (SSD/mSATA)
: 0°C~50°C (HDD)
- Operating (J1900/N2807)
: 0°C~60°C (SSD/mSATA)
: 0°C~50°C (HDD)
- Storage: -20°C~85°C
-
Operating Vibration
- IEC68-2-64 (3G) (SSD/mSATA)
- IEC68-2-64 (1G) (HDD)
-
Operating Shock
- Half sine wave 15G, 11ms, 3 shock per axis (SSD/mSATA)
- Half sine wave 3G, 11ms, 3 shock per axis (HDD)
|
|
|
|
|
|
结构
|
-
Aluminum + metal aluminum
|
|
|
|
|
|
安装方式
|
-
Wall/VESA/DIN Rail mount
- Mounting brackets and screws*
|
|
|
|
|
|
尺寸
|
-
180mm x 33mm x 121.2mm (W x H x D)
|
|
|
|
|
|
重量
|
|
|
|
|
|
|
|
支持的操作系统
|
-
Windows 7, WES 7, Windows 8, WES 8, Windows 8.1
-
Linux (Distribution available upon request)
Note: Windows 10 will be available upon request. Please contact DFI for more information.
|
|
|
|
|
|
