Processor

Support Socket G2 RPGA988 for:  CPU

- 3rd Generation & 2nd Generation Intel® Core TM processors

CPU Speed                     Optional

Power consumption          TDP=35W

Memory

Technology                     DDR3/DDR3L 1066/51333/1600MHz

Memory capacity

Optional (Install  mSATA up to 16GB; Install 2.5”HDD, up to 8GB)

Storage

SATA

1  x 2.5” Hard Disk (Optional)

mSATA

1 x mSATA (Full-size, Optional)

Graphics

Graphics

Intel ® HD Graphics

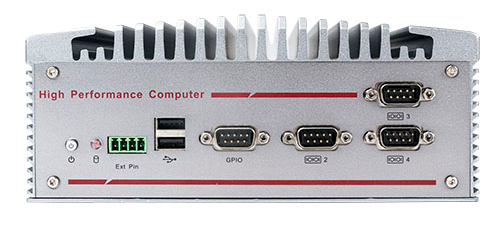

Front I/O

Power/LED                     1 x Power SW ; 1 x Power LED;  1 x HDD LED;

1 x Extending Power SW  ;1 x Extending Power LED

COM                             3  x COM

GPIO                             1 x GPIO (4-in/4-out)

USB                               2 x USB2.0

Rear I/O

Power supply

1 x DC 12V IN

Display  interface              1 x VGA, 1  x HDMI, 1x DVI-D

LAN

2 x Intel Gigabit LAN (82579LM+82583V)

USB                               4 x USB2.0, 2 x USB3.0

COM

1 x COM ( Optional RS232/422/485)

Keyboard mouse              1 x PS/2

Audio

1  x Line-IN/Line-Out/MIC

WIFI                              Optional

Adapter

Power in put                   AC 100~240V/1.5A 50/60MHz

Power out  put                  DC 12V/7A

Expansion

Mini  PCIe

1  x Mini PCIe (full-size)

Size

W: 226mm D: 260mm H:90.4mm

Environment

Operating temperature:

0°C ～ 60°C  /10~95%,non-condensing

Storage temperature

-10°C ～ 70°C /10~95%,non-condensing
