Frequency

2.0G/4C/4T

TDP

10W

Memory

Frequency

1 x DDR3L 1600MHz

Capacity

Optional , Up to 8GB

Storage

SATA

1 x 2.5"  Hard Disk

mSATA

1 x mSATA (Full-Size, Optional)

Display

Graphics

Intel HD Graphics

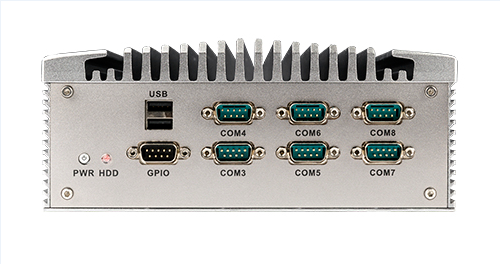

Front I/O

Button/LED Display

1 x Powe Button(w/LED),  1 x HDD LED

Serial

6 x COM (RS232)

USB

2 x USB2.0

GPIO

4-In, 4-Out

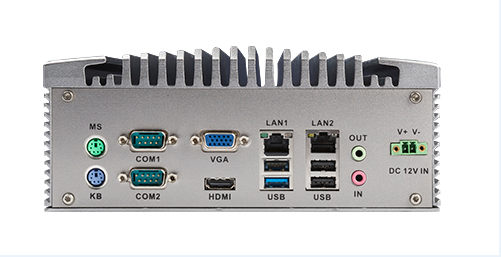

Rear I/O

Power In Connector

1 x DC 12V IN

Display Port

1 x VGA；1 x HDMI

Serial

2 x COM(RS232/422/485)

LAN

2 x Gigabit LAN

USB

3 x USB2.0 ; 1 x USB3.0

PS/2 KB/MS

1 x KB/MS

Audio

1 x Line-Out/MIC

Grounded

1 x GND

Power Adaptor

Power Input

AC 100~240V/1.5A 50/60Hz

Power Output

DC 12V/5A

Expansion

Mini PCIe

1 x Mini PCIe (Half-Size)

Dimensions

W:200mm x D:260mm x H:84.4mm

Environment

Operating Temp &Relative Temp

-10~70℃/10~90%, Non-Condensing

Storage Temp & Relative Temp

-20~80℃/10~90%, Non-Condensing

Certification

EMC

CE / FCC
